Description

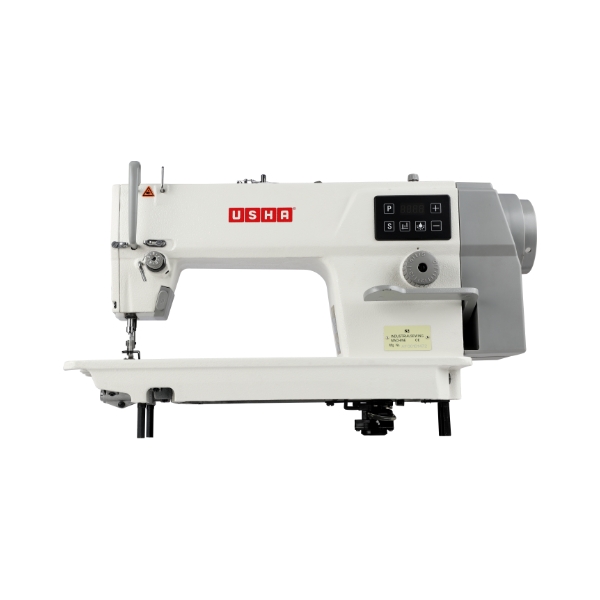

The Usha S2 (Single Needle Lockstitch Direct Drive Machine w/o Trim mer) is a new favourite among users of high-speed industrial machines. The 550 watts motor powers the machine enabling it to stitch at speeds as high as 5000 SPM (stitches per minute) while also making it durable. While its Up/down needle position feature facilitates corner stitching, pocket attaching, as well as collar stitching, the soft start speed feature avoids thread breakage while starting the stitching. Country of Origin: China

Buy Now

Retail Store

Features

Environment friendly power efficient direct drive in-built motor.
Maximum speed: 5000 SPM.
Maximum stitch length: 5 mm.
Presser bar lift by knee: 5.5/13 mm.
Programmable sewing speed
Push button for half stitch function
Copper winding motor.
LED type needle light.
Auto lubrication
Needle position (Up/Down)
Equipped with safety features like – motor pulley cover, finger guard and take up lever guard.
Broader reverse lever for better grip
Better position of touch panel for ease of use

Technical Specifications

Suitable for over edging of woven & non-woven fabric and sports wear
Suitable for light to medium fabric for stitching after cutting the edges of a fabric

Model Number	:	Usha-S2 Single Needle Lock Stitch
Application	:	Stitching For L TO M Fabric
Stitch Type	:	SNLS-301
Needle Light	:	LED Type-3 STEP
Feed Dog	:	2
Feed Dog Height	:	4
Tilt of Feed Dog Angle	:	2 mm
Differential Feed	:	0.7-2.0 mm
Needle Bar Stroke	:	6 mm
Needle System / Size	:	6000 SPM
Lubrication Type	:	2
Hook Set	:	Automatic
Hook Set Oil Systems	:	Servo
Stitch Length Max.	:	Copper
Feed Type	:	Drop Feed
Pressure Foot Height	:	5.5/13 MM
Stitch Correction Key	:	Yes
Up / Down Needle Position	:	Yes
Sewing Speed Adjustments	:	Yes
Motor Type & Watt	:	In- built Direct Drive Motor & 550W
Sewing Speed	:	5000 SPM
Table Size	:	L 1066MM (42″) X W 558MM (22″) X T 35 MM
Stand Type	:	I TYPE (Height Adjustable)
